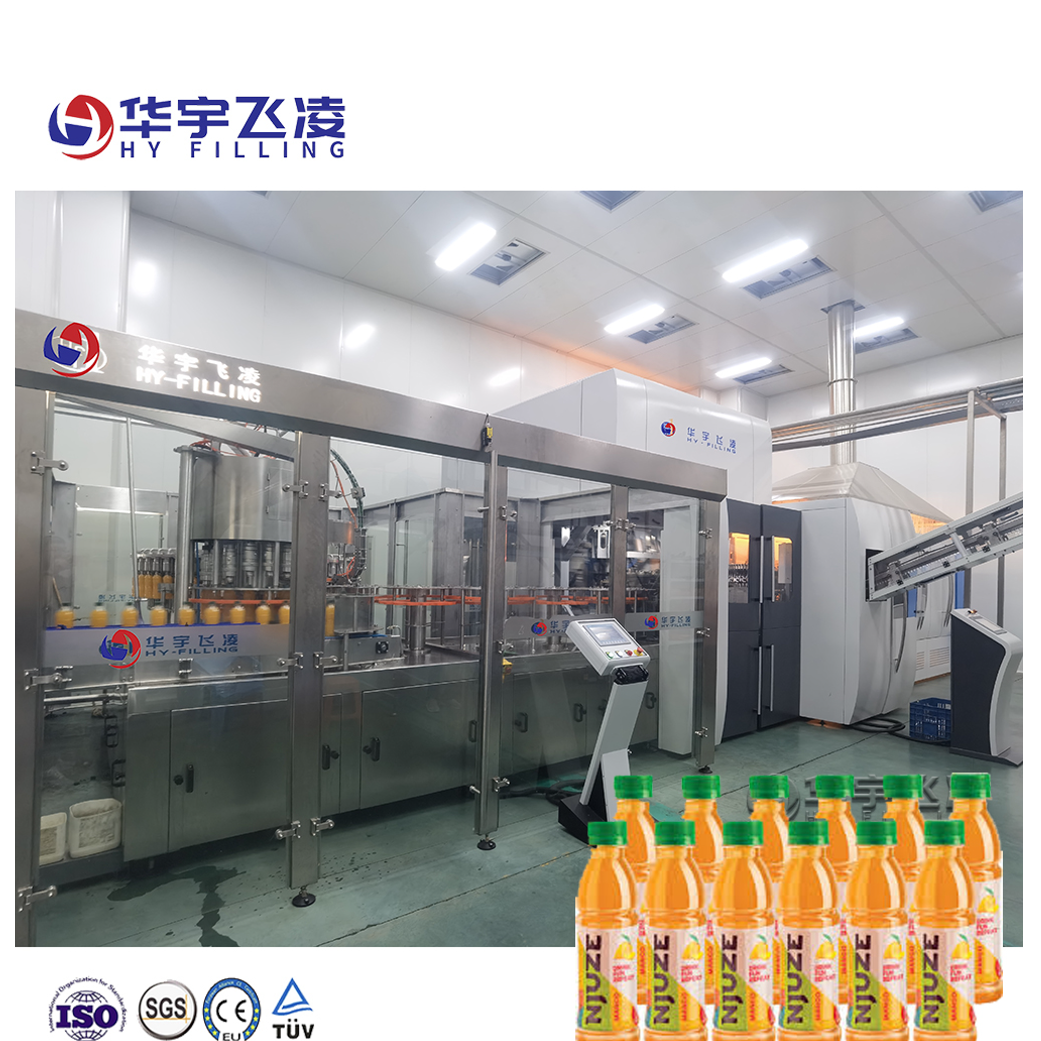

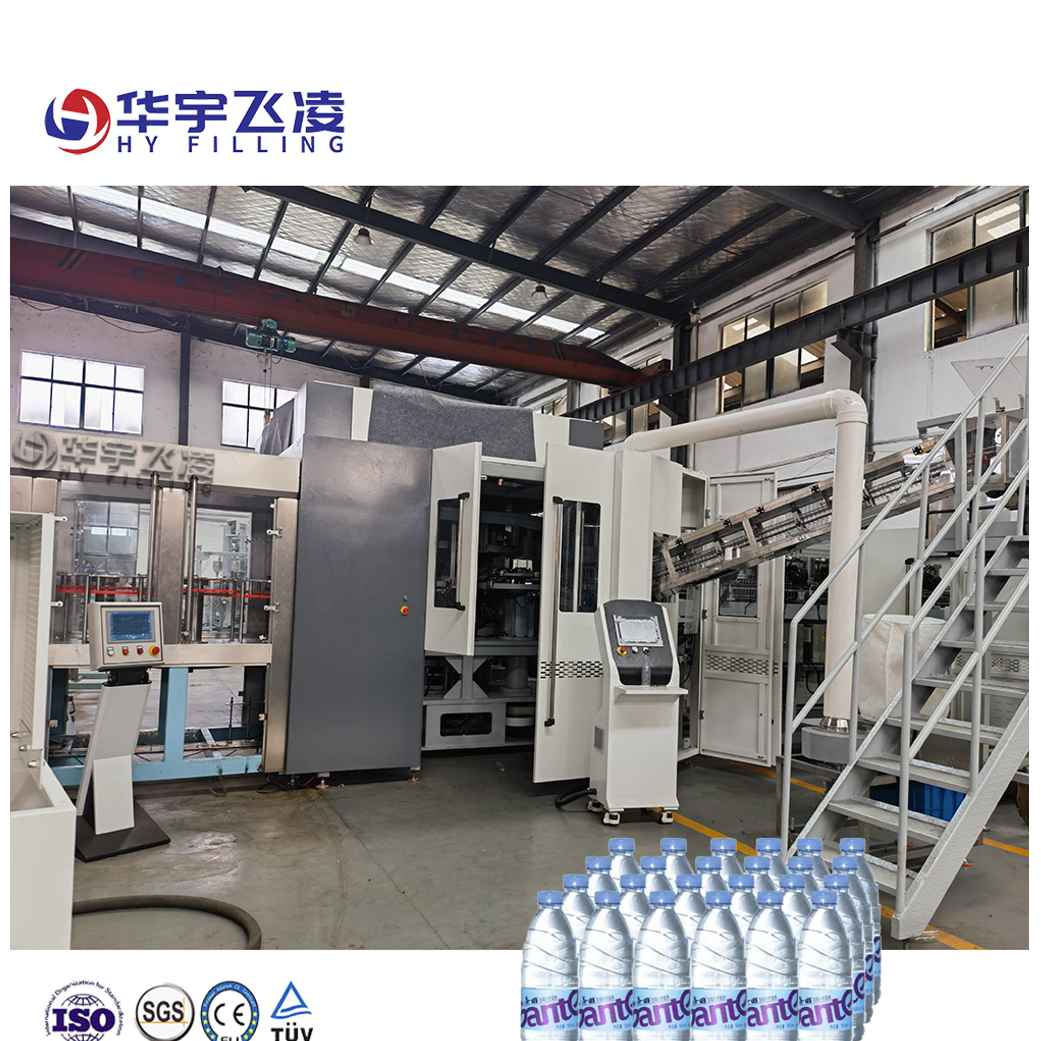

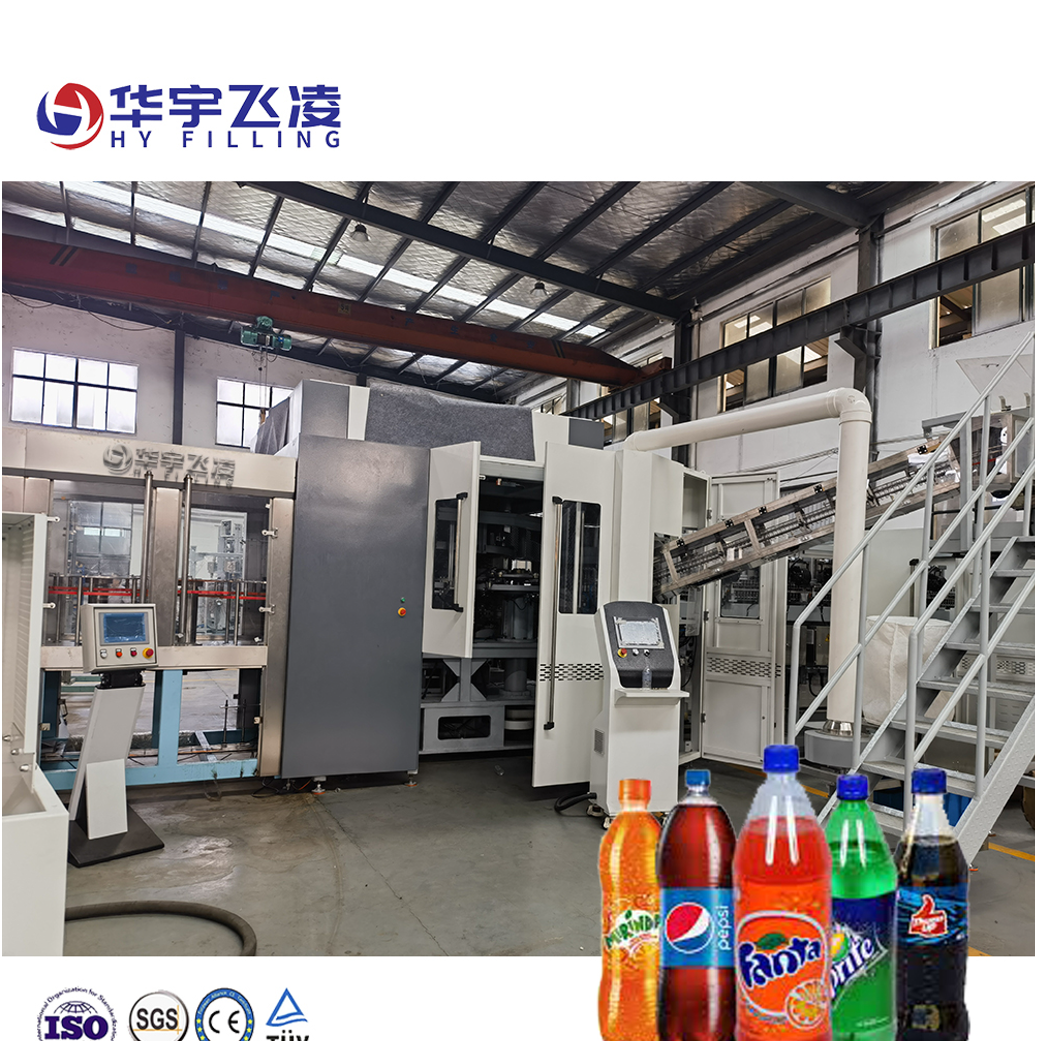

12000-48000BPH PET bottle blowing filling capping combiblock line for bottled water CSD or juice drinks
- Packaging Equipment, Containers & Supplies
aileen.liu@mesuremachinery.com
PET bottle blowing filling capping combiblock line for CSD carbonated soft drinks, for fruit pulp juice drinks for drinking water with the capacity range 12000BPH to 48000BPH
Combiblock blowing filling capping machine specially design for big capacity PET bottled water, juice or carbonated soft CSD drinks, it integrated blowing, filling and capping 3 function together, has below advantages
1. No need air conveyor to connect the blowing machine and filling machine, save the space and also save the electricity
2. after the bottle blowed out, immediately filling, no need water to rinse the bottle, save the water energy
3. the structure is very compact, save the room to layout the machine
Linear Heating Oven:
1) A mandrel capable of turning 180 degrees guarantees uniform neck section during the heating. A unique oven ventilation system enables the blowing system to handle various difficult applications easily.
2) Water cooling plate: cooling bottle neck is to avoid neck deformation during heating.
3) Infrared heat lamps:
i). Lamp unit is individually adjustable;
ii). Lamp gripper is adjustable as angle changes;
iii). Lamp rod is adjustable in length, which is good for bottom heating;
Advantage of Rotary Automatic Stretch-Blow Molding Machine
1) With SIMENS PLC controlling system to ensure high precision and fast speed;
2) High eligible rate: above 99.7%;
The mold carrier with a shell blow mold design; this reduces the changeover time for different blow molds. The Mold carriers accommodate all shell type molds from conventional blow molding machines, this saves time and expense for bottle producer. Moreover, the reliable quick locking system maximizes the performance of the mold carriers.Blowing Station
A changeable cam for the stretching curve guider guarantees the form quality for different bottle size. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during blowing stage by a specially designed sealing unit.
